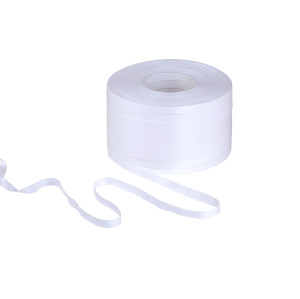

High Density Ptfe Cable Wrapping Film
- Model
- FS12-HD
Item specifics
- Brand & Logo:
- Foreverseal
- Busniess type:
- Manufacturer
- Material:
- PTFE
- Specification:
- 1.60g/cm3
- Color of tape:
- White
Review
Description
FEATURES
HIGH DENSITY (ePTFE) FILM & TAPE
High density PTFE films/tapes provide superior electrical and chemical of the standard serious. High density PTFE films/tapes are recommended in highly critical military and aerospace,to high demand general industrial.
l Technical Data for low density unsintered ptfe tape:
MATERIAL | PTFE (Polytetrafluorethylene) | |||||||
COLOR | Natural,white or colors | |||||||
THICKNESS | 0.051mm | 0.076mm | 0.102mm | 0.127mm | 0.152mm | 0.203mm | 0.254mm | |
|
TOLERANCE
|
+/-0.005 | +/-0.005 | +/-0.006 |
+/-0.0076
|
+/-0.0076 |
+/-0.01
|
+/-0.01
|
|
WIDTH | 4mm - 200mm | |||||||
DENSITY | 1.60g/cm3 | |||||||
|
TENSILE STRENGTH (minimum)
|
15MPa |
|||||||
|
ELONGATION (minimum)
|
150% |
|||||||
Production Center
Features & Applications
· High temperature and chemical resistance
· Flammability resistivity
· High porosity results in superior dielectric properties
· High tensile strengths that support fast wrapping speeds
· Long joint free lengths
· RoHS and REAH compliant
Where do we use our ePTFE FILM
· Wire and cable insulation for extreme chemical and thermal environments
· Binder tape in cable constructions and wire harnesses
· Dielectric material in coaxial cables
· Aircraft and high performance wire and cable
· And more
