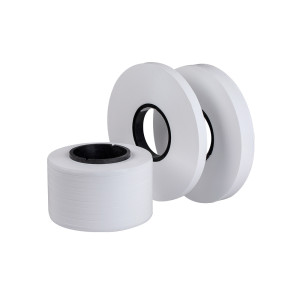

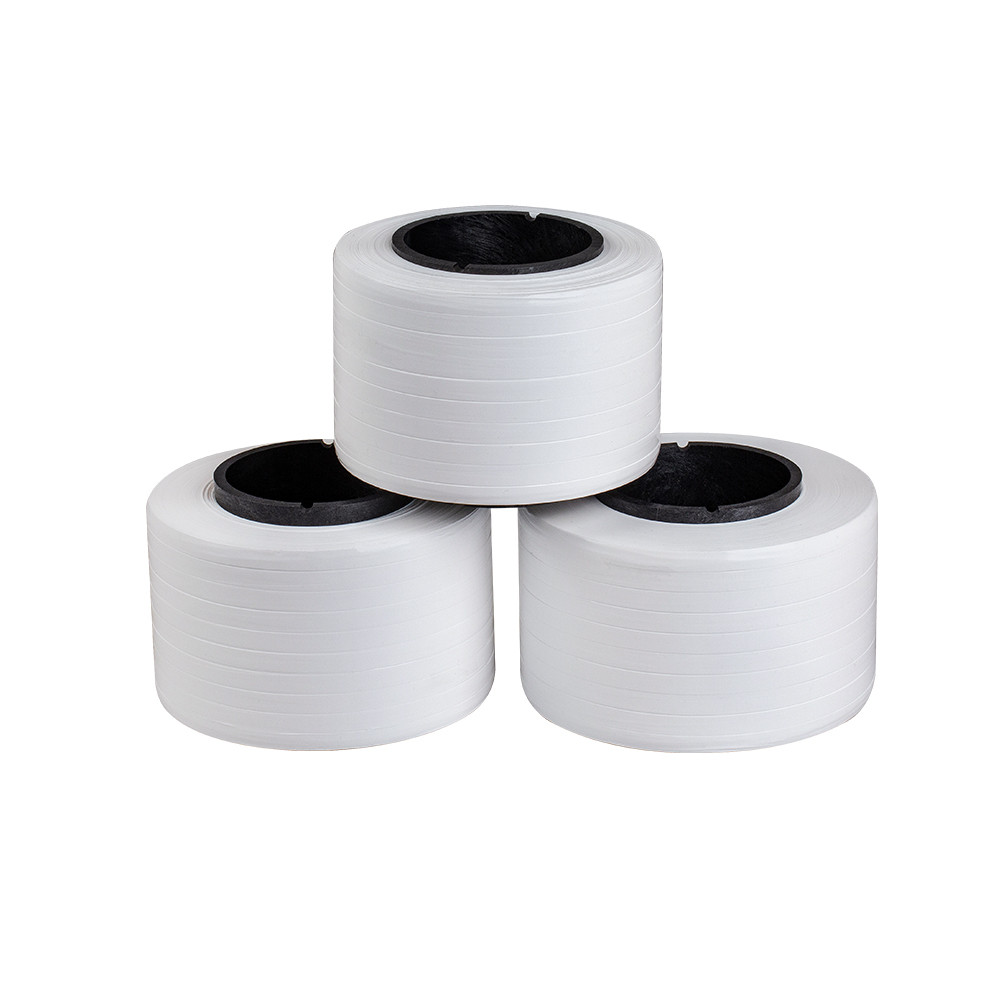

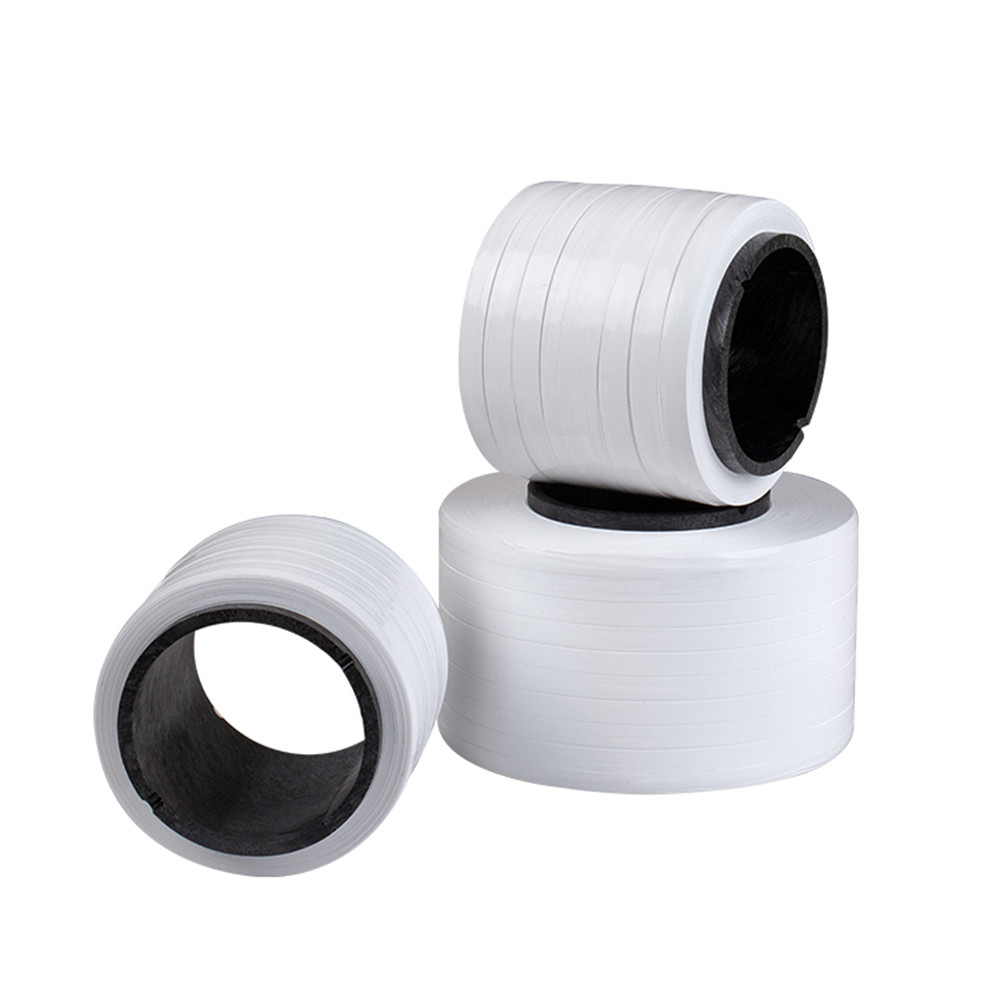

High dielectric strength eptfe tape for 50 ohm coaxial microwave cable
High dielectric strength eptfe tape for 50 ohm coaxial microwave cable
High dielectric strength eptfe tape for 50 ohm coaxial microwave cable
High dielectric strength eptfe tape for 50 ohm coaxial microwave cable
High dielectric strength eptfe tape for 50 ohm coaxial microwave cable
High dielectric strength eptfe tape for 50 ohm coaxial microwave cable
Model
FS12-LD

Item specifics

Brand & Logo
Foreverseal
Busniess type
Manufacturer
Material
PTFE
Standard density
0.50g/cm3 - 0.90g/cm3
Thickness
50mm - 254mm
Width
5-200mm

Review

Description

FEATURES

LOW DENSITY (ePTFE) FILM & TAPE

Low density PTFE film & tape produce micropore through stretch and under a certain specific and tightly controlled conditions to achieve low dielectric constant and high tensile strength.

It's lightsoftflame retardant and the low dielectric constant makes low density PTFE tapes for high frequency microwave coaxial cable applications in data transfer,militarty and medical field.

l  Technical Data for low density unsintered ptfe tape:
THICKNESS
0.051mm
0.076mm
0.102mm
0.127mm
0.152mm
0.203mm
0.254mm
TOLERANCE
+/-0.005
+/-0.005
+/-0.006
+/-0.0076
+/-0.0076
+/-0.01
+/-0.01
WIDTH
4mm - 200mm
DENSITY
0.50g/cm3 - 0.90g/cm3
     TENSILE STRENGTH         (minimum)
12MPa
         ELONGATION            (minimum)
50%
Production Center
Features & Applications

    ·   High temperature and chemical resistance

 · Flammability resistivity

 ·    High porosity results in superior dielectric properties

    ·    High tensile strengths that support fast wrapping speeds

    ·    Long joint free lengths

    ·    RoHS and REAH compliant

Where do we use our ePTFE FILM

· Wire and cable insulation for extreme chemical and thermal environments

· Binder tape in cable constructions and wire harnesses

· Dielectric material in coaxial cables

· Convoluted hose constructions

· And more
